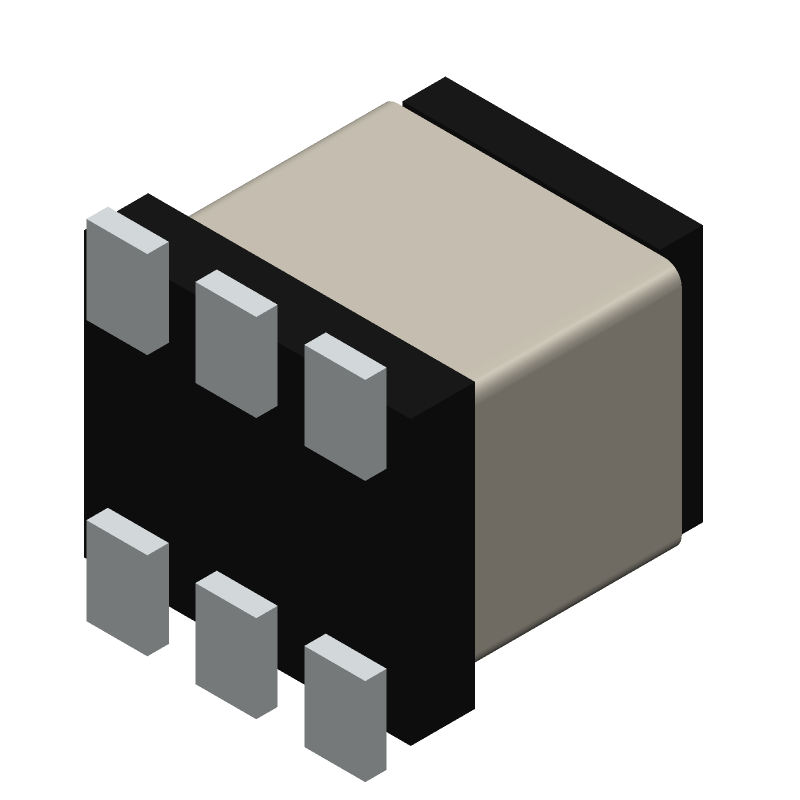

TCM2-33WX+ datasheet by Mini-Circuits

TCM2-33WX+ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and grounding scheme for optimal performance?
  A good PCB layout and grounding scheme is crucial for optimal performance. Mini-Circuits recommends a multi-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. A good rule of thumb is to keep the signal traces within 1/4 inch of the device.
• How do I ensure the device is properly biased for optimal performance?
  To ensure proper biasing, follow the recommended biasing circuit shown in the datasheet. Make sure to use a high-quality voltage regulator and decoupling capacitors to minimize noise and ripple. Also, ensure the bias voltage is within the recommended range of 12-15V.
• What is the maximum power handling capability of the device?
  The TCM2-33WX+ can handle up to 2W of input power. However, it's recommended to derate the power handling to 1.5W or less to ensure reliable operation and minimize the risk of overheating.
• How do I troubleshoot common issues such as oscillations or instability?
  To troubleshoot oscillations or instability, check the PCB layout and grounding scheme for any issues. Ensure that the device is properly biased and that the input and output impedances are matched. Also, check for any signs of overheating or thermal issues.
• What is the recommended storage and handling procedure to prevent damage?
  To prevent damage, store the device in a dry, cool place away from direct sunlight. Avoid touching the device's pins or leads to prevent electrostatic discharge (ESD) damage. When handling the device, use an anti-static wrist strap or mat to prevent ESD damage.
