A good PCB layout and grounding scheme is crucial for optimal performance. It is recommended to use a multi-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. The device should be placed close to the edge of the board to minimize the length of the input and output traces. A via-stitched ground plane is also recommended to reduce the inductance of the ground path.
To ensure proper biasing, it is recommended to use a voltage regulator to provide a stable voltage supply to the device. The recommended bias voltage is 5V, and the current consumption is typically around 100mA. It is also important to ensure that the input and output impedance are matched to the device's impedance to minimize reflections and ensure optimal performance.

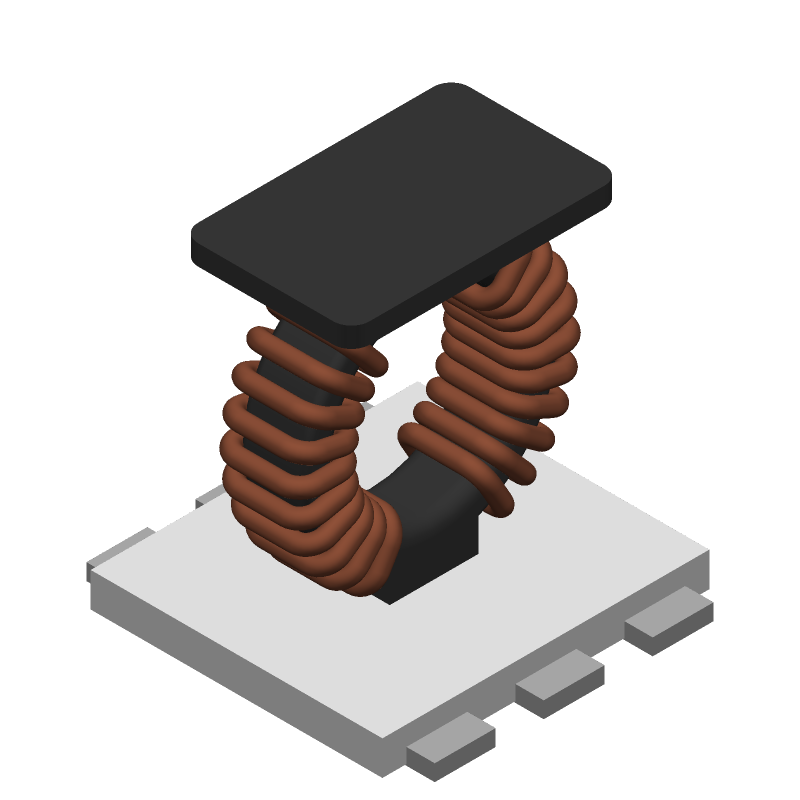

The maximum power handling capability of the TCM1-83X+ is +15dBm. Exceeding this power level may cause damage to the device or affect its performance. It is recommended to use an attenuator or a limiter to prevent excessive power from reaching the device.
To troubleshoot common issues such as oscillations or instability, it is recommended to check the PCB layout and grounding scheme to ensure that they are optimal. Also, check the bias voltage and current consumption to ensure they are within the recommended range. Additionally, check for any signs of overheating or physical damage to the device. If the issue persists, it may be necessary to consult the datasheet or contact Mini-Circuits' technical support for further assistance.
To prevent damage to the device, it is recommended to store it in a dry, cool place away from direct sunlight and moisture. The device should be handled by the edges to prevent electrostatic discharge (ESD) damage. It is also recommended to use an anti-static wrist strap or mat when handling the device.
