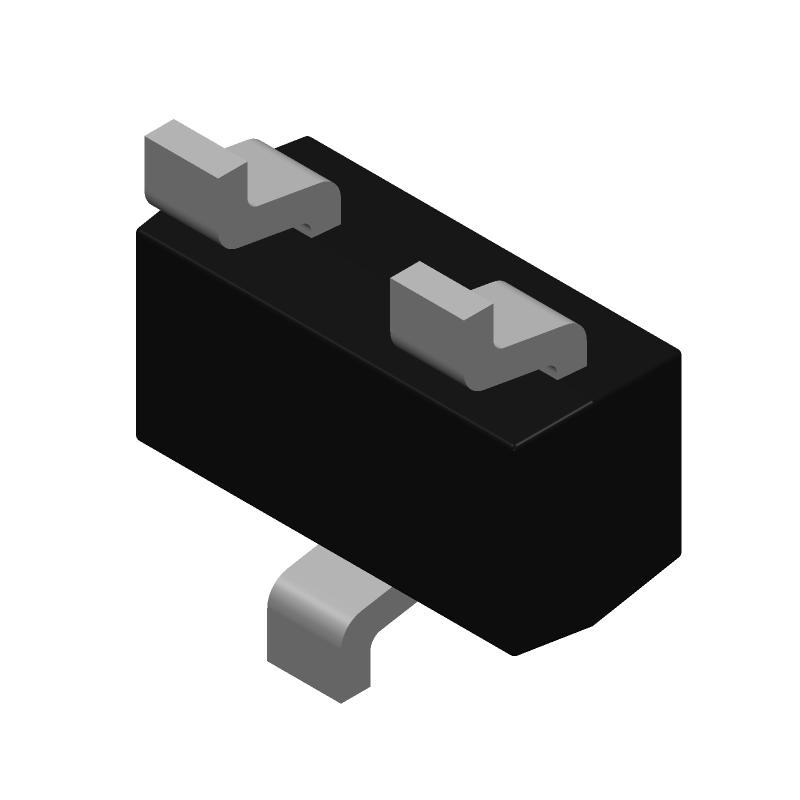

BAT54T-TP datasheet by Micro Commercial Components

BAT54T-TP Frequently Asked Questions (FAQs)

• What is the recommended footprint for the BAT54T-TP?
  The recommended footprint for the BAT54T-TP is a standard SOT23 package with a minimum pad size of 0.8mm x 0.8mm and a maximum pad size of 1.2mm x 1.2mm.
• Can I use the BAT54T-TP in a high-temperature environment?
  The BAT54T-TP is rated for operation up to 150°C, but it's recommended to derate the current and voltage ratings above 125°C to ensure reliable operation.
• How do I handle ESD protection when working with the BAT54T-TP?
  The BAT54T-TP has an internal ESD protection diode, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.
• Can I use the BAT54T-TP as a switch?
  While the BAT54T-TP can be used as a switch, it's not recommended due to its relatively high forward voltage drop and low current handling capability. A dedicated switch or transistor would be a better choice for switching applications.
• How do I calculate the power dissipation of the BAT54T-TP?
  The power dissipation of the BAT54T-TP can be calculated using the formula P = Vf x If, where Vf is the forward voltage drop and If is the forward current. The maximum power dissipation is 250mW.
